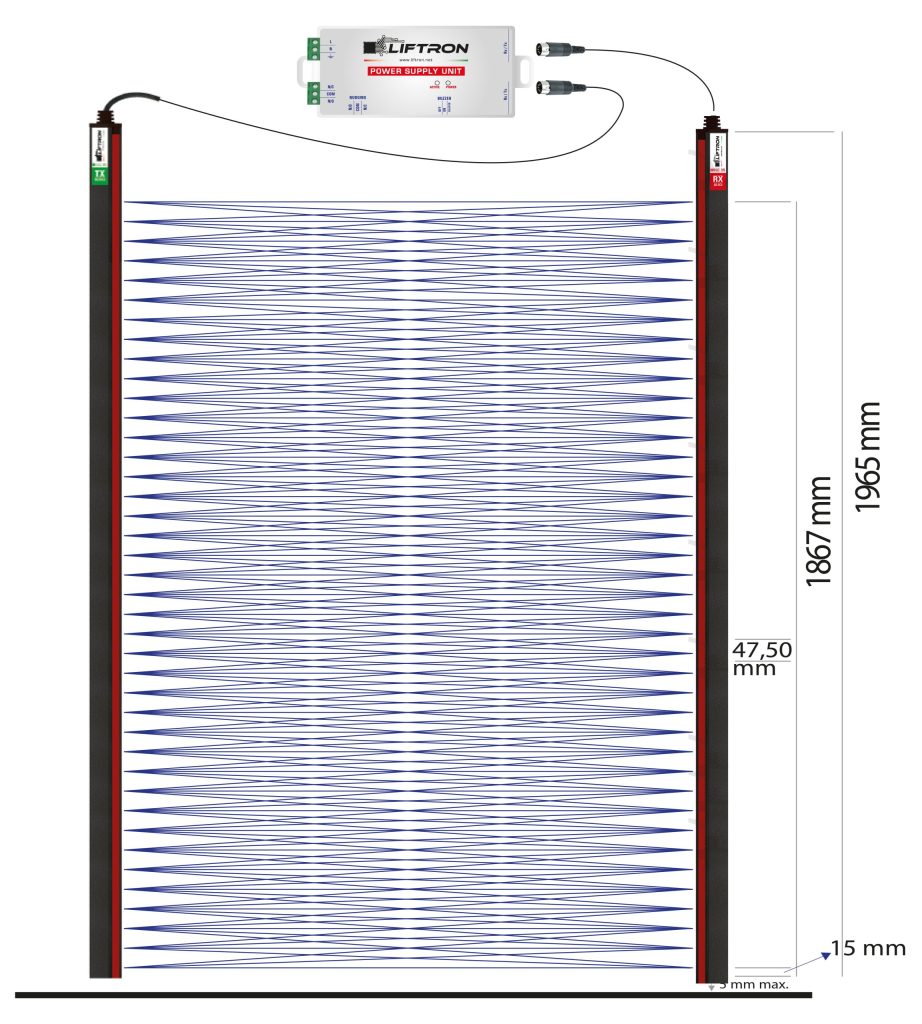

Technical Specifications
Standard EN 81-20 EN 81-70
# IR Diodes 40
#Beams 194
Detecting Height (mm) 15-1867
Distance of Diodes (mm) 47.5
Operation Distance (mm) 4000
Response Time < 100 ms
Operating Temperature (°C) -20 / +65
Cable Length 2.5 m x 2
Alignment Tolarance (mm) Vertical +/- 15 Horizontal +/- 3
Profile Dimensions (mm) 11.64×21.45×1965
working In Sunlight
Technical Specifications
Operating Voltage 85-265 VAC
Power Consumption ≤ 4 W
Operating Temperature (°C) -20 / +65
Signal Output Relay (1 NC, 1 NO, 1 COM)
Nudging Output Relay (1 NC, 1 NO, 1 COM)
Buzzer Switch Off / On / Delayed
Dimensions (mm) 53.6 x 114.6 x 31
